Solar Battery
Solar battery is an energy storage device that works in conjunction with a solar power system. It stores electricity generated by solar panels, allowing homeowners and businesses to use stored energy when solar production is low or unavailable. This helps in maximizing solar energy usage and reducing dependence on the grid.
We Can Supply
- LiFePO4
- Custom Lithium Battery
- Gel Battery
Different Types of Solar Battery
Solar batteries come in various types, each with distinct advantages and applications.
LiFePO4 (Lithium Iron Phosphate) wall-mounted energy storage battery is a type of rechargeable battery commonly used for energy storage systems. LiFePO4 batteries have gained popularity in recent years due to their high energy density, long cycle life, and enhanced safety compared to other lithium-ion battery chemistries.
| Model | Specification |
|---|---|
| 38121-3kwh LiFePO4 | Capacity: 3000wh Cross Weight: 42.5±3% KG Dimension: 630*460*185±3mm |
| 38121-5kwh LiFePO4 | Capacity: 5000wh Cross Weight: 52±3% KG Dimension: 700*490*275±3mm |
| 38121-10kwh LiFePO4 | Capacity: 10000wh Cross Weight: 104±3% KG Dimension: 1080*740*285±3mm |

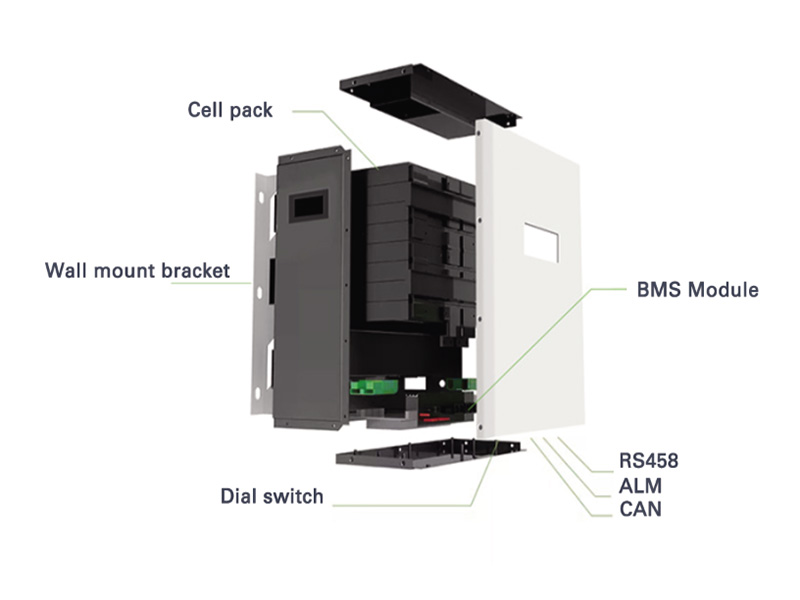

Constituent Part

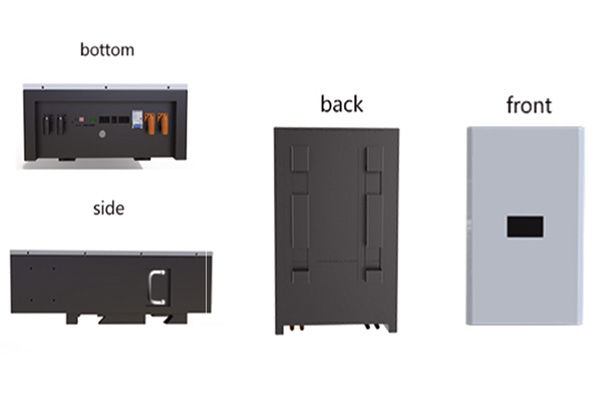

Multi-angle Display
| Specification | Standard Voltage (V) | Nominal Capacity (AH) | Cycles | Combination |
|---|---|---|---|---|
| 12V9AH Lithium Iron Phosphate Battery | 12V | 9ah | 2000 times | 1S |
| 12.8V12AH Lithium Iron Phosphate Battery | 12.8V | 12ah | 2000 times | 4S |
| 12.8V30AH Lithium Iron Phosphate Battery | 12.8V | 30ah | 2000 times | 4S |
| 24V12AH Lithium Iron Phosphate Battery | 25.6V | 12ah | 2000 times | 8S |
| 24V20AH Lithium Iron Phosphate Battery | 25.6V | 20ah | 2000 times | 8S |
| 24V30AH Lithium Iron Phosphate Battery | 25.6V | 30ah | 2000 times | 8S |
| 48V12AH Lithium Iron Phosphate Battery | 51.2V | 12ah | 2000 times | 16S |
| 48V20AH Lithium Iron Phosphate Battery | 51.2V | 20ah | 2000 times | 16S |
| 48V30AH Lithium Iron Phosphate Battery | 51.2V | 30ah | 2000 times | 16S |
| 60V40AH Lithium Iron Phosphate Battery | 64V | 40ah | 2000 times | 20S |
Gel battery is a type of lead-acid battery that uses a gel electrolyte instead of liquid. Known for its durability, deep-cycle capabilities, and maintenance-free design, gel batteries are widely used in renewable energy systems, electric vehicles, and backup power solutions.
| Model | Voltage (V) | Capacity (AH) | Size (mm) |
|---|---|---|---|
| IFR12V7AH | 12.8 | 6.6 | 151*65*95 |
| IFR12V10AH | 12.8 | 10 | 151*65*95 |
| IFR12V12AH | 12.8 | 12 | 151*98.5*98.5 |
| IFR12V20AH | 12.8 | 20 | 181*76*167 |
| IFR12V40AH | 12.8 | 40 | 197*165*169 |
| IFR12V50AH | 12.8 | 50 | 197*165*169 |
| IFR12V75AH | 12.8 | 75 | 260*170*220 |
| IFR12V80AH | 12.8 | 80 | 260*170*220 |
| IFR12V100AH | 12.8 | 100 | 323*175*235 |
| IFR12V150AH | 12.8 | 150 | 532*205*220 |
Benefits of Solar Batteries
Solar battery comes with multiple benefits, including:
- Energy Independence: Reduce reliance on the power grid and protect against outages.
- Lower Electricity Bills: Store excess solar power for use during peak hours.
- Backup Power Supply: Ensure uninterrupted power during blackouts.
- Environmental Benefits: Reduce carbon footprint by utilizing stored renewable energy.
Start Doing Business with Us Today!
Our company is a leading solar products supplier and manufacturer in China. We export different types of solar batteries to over 30 countries.
